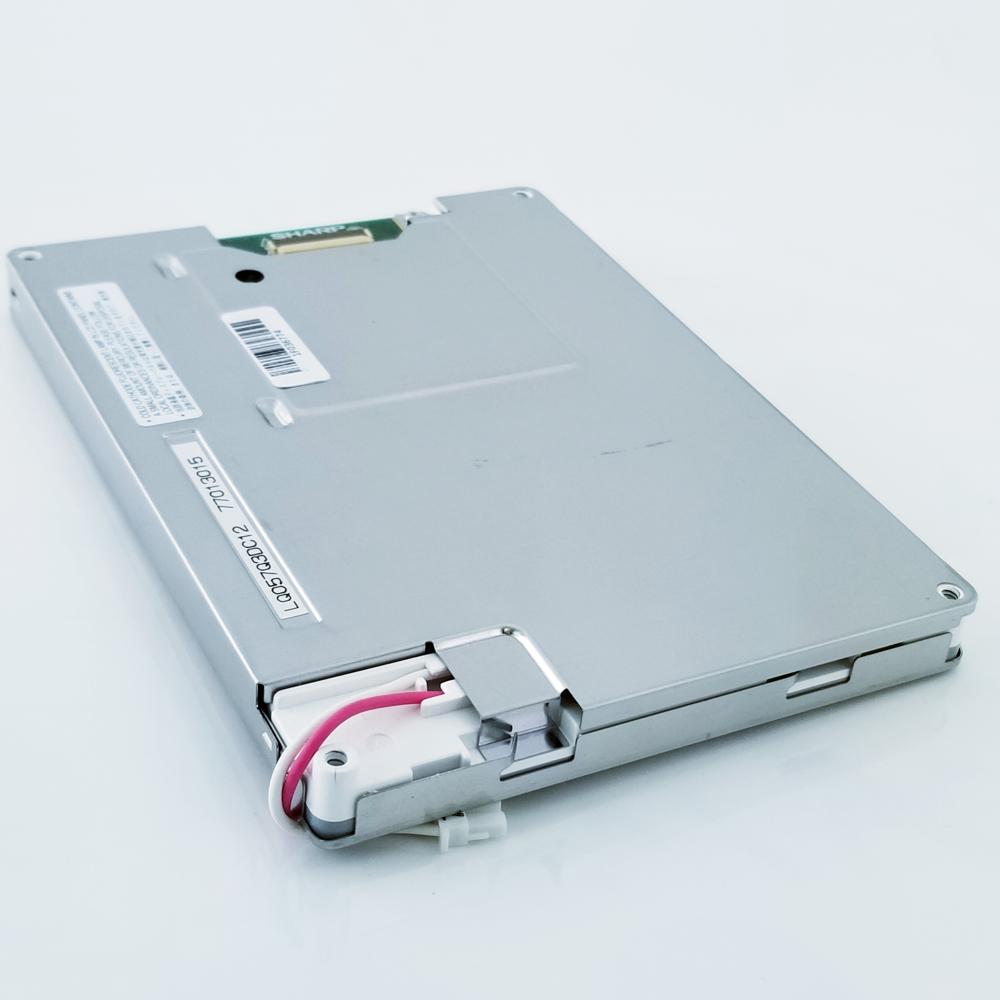

LQ057Q3DC12 LCD Display

Name: LQ057Q3DC12 LCD Display
Brand: GLOBAL ELECTRONICS SYSTEM
Price: 4500.0 INR
Availability: InStock

Price 4500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

LQ057Q3DC12 LCD Display Specification

Place of Origin
Japan

Working Temperature
-20C to 70C

Aspect Ratio
4:3

Widescreen
NO

Interface
31-pin CMOS

Panel Life
50,000 hours

Type
LCD Display

Application
Industrial Equipment, Medical Instruments, Automotive Display

Screen Size
5.7 inch

Brightness
200 cd/m2

Flat
Yes

Viewing Angle
120(H)/100(V)

Max Resolution
320 x 240 (QVGA)

Contrast Ratio
300:1

Response Time
25 ms (typical)

Panel Type
TFT LCD

Pixel Pitch
0.36 mm x 0.36 mm

Dimension (L*W*H)
131 mm x 104.6 mm x 8.2 mm

Weight
180 g

Power Consumption
3.0 W (typical)

Mounting Type
Panel Mount

Signal System
TTL

Surface Treatment
Anti-glare

Display Colors
262K (6-bit)

Touch Panel
Not included

Storage Temperature
-30C to 80C

Backlight Type
CCFL

RoHS Compliance
Yes

Active Area
115.2 mm x 86.4 mm

About LQ057Q3DC12 LCD Display

Order today and secure the LQ057Q3DC12 LCD Display, now available at a remarkable price cut! This inestimable 5.7-inch display offers a pivotal 262K color range on a TFT LCD panel, delivering impeccable clarity with a 4:3 aspect ratio and 320 x 240 QVGA resolution. With anti-glare surface treatment, robust CCFL backlight, and 50,000-hour panel life, it's the go-to choice for industrial, medical, and automotive displays. RoHS compliant and engineered in Japan, this panel promises reliability and exceptional performance. Buy now from India's trusted supplier and experience excellence!

Versatile Applications for LQ057Q3DC12 LCD Display

The LQ057Q3DC12 LCD Display is ideally suited for both specific and general uses in a range of industries. Commonly used as a display module in industrial equipment, automotive dashboards, and medical instruments, its flat construction and anti-glare surface make it versatile for demanding applications. With panel mount design and a robust operating temperature range, it is a pivotal component for reliable performance in diverse environmental conditions and display surfaces.

Global Export Markets and Reliable Domestic Availability

The LQ057Q3DC12 LCD Display is stock ready for distribution to main export markets worldwide, as well as major domestic markets across India. Samples are available on request, allowing for evaluation before bulk purchase. Each display is securely packaged to prevent damage during transit, while our streamlined shipping process ensures timely and secure delivery to your door. Trust our expertise for quality assurance and impeccable after-sales support.

FAQ's of LQ057Q3DC12 LCD Display:

Q: How durable is the LQ057Q3DC12 LCD Display for long-term industrial use?

A: The LQ057Q3DC12 features a robust panel life of 50,000 hours and operates within a wide temperature range, making it suitable for intensive industrial, automotive, and medical applications.

Q: What are the key benefits of the anti-glare surface treatment?

A: The advanced anti-glare treatment minimizes reflections and enhances visibility, ensuring impeccable clarity in environments with challenging lighting conditions.

Q: Where can the LQ057Q3DC12 LCD Display be installed?

A: This panel mount display is designed for integration into equipment panels, control systems, and dashboard interfaces across various industries, thanks to its versatile dimensions and secure mounting method.

Q: What is the process for ordering samples and bulk quantities?

A: Samples are available on request. For bulk orders, you can contact us directly for pricing and stock confirmation. Secure shipping and careful packaging ensure safe delivery.

Q: When can I expect delivery after placing an order for this product?

A: With stock ready in India and efficient shipping partners, orders are dispatched quickly. Delivery times depend on your location, but we aim to ensure prompt arrivals for all customers.

Q: How does its RoHS compliance benefit my project?

A: RoHS compliance ensures that the LQ057Q3DC12 LCD Display meets environmental and safety standards, making it a responsible and safe choice for any application.
