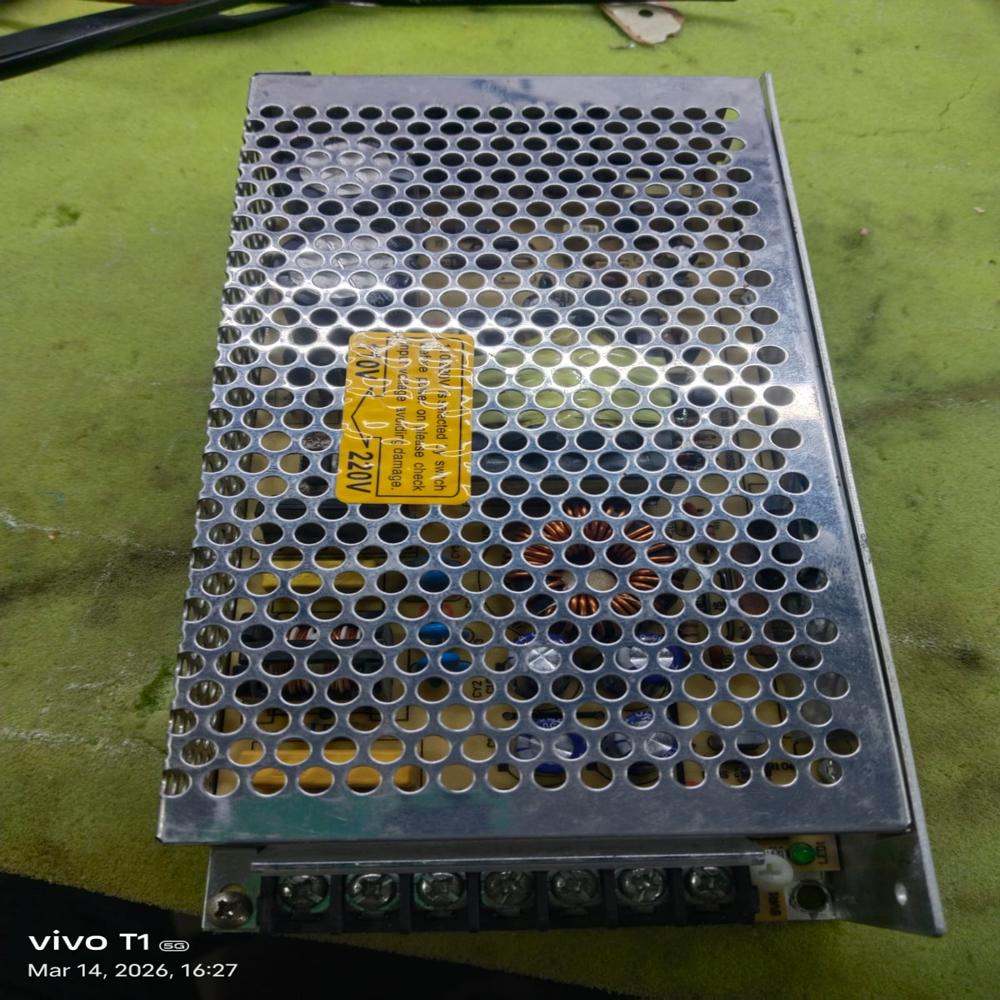

Send InquiryPOWER SUPPLY
Price 2000.0 INR/ Unit
MOQ : 1 Unit
POWER SUPPLY Specification
- Current Range
- 0-8.5A
- Connector Type
- Screw Terminal Block
- Features
- LED Indicator, Low Ripple, Overload & Overheat Protection
- Phase
- Single Phase
- Operating Temperature
- -10C to 60C
- Rated Current
- 8.5A
- Application
- Industrial Automation, LED Lighting, CCTV, PLCs, Panels
- Output Current
- 8.5A (at 12V)
- Output Type
- Single/Multiple DC Output
- Noise Level
- 50mVp-p Ripple & Noise
- Cooling Method
- Natural Air Cooling
- Rated Power
- 100W
- Working Temperature
- -10C to 60C
- Power Supply
- AC to DC
- Power Factor
- >0.55
- Product Type
- SMPS Power Supply
- Output Power
- 100 Watt
- Output Frequency
- 47-63 Hz
- Input Voltage
- According to SMPS voltage Volt (V)
- Voltage Protection
- Over Voltage, Over Current, Short Circuit Protection
- Efficiency
- 85%
- Material
- Metal Enclosure / Aluminium
- Line Regulation
- 1%
- Storage Temperature
- -20C to 85C
- Weight
- Approx. 350g
- Mounting Type
- DIN Rail / Panel Mounting
- Dimension (LxWxH)
- 159 x 97 x 38 mm
- Input Frequency
- 50/60 Hz
- Output Voltage
- 12V DC
- Insulation Resistance
- 100M (500VDC)
- Adjustable Output Voltage
- 11.4-13.2V DC
- Humidity
- 20% to 90% RH non-condensing
- Hold-up Time
- >10ms (at full load)
- Dielectric Strength
- 1500VAC, 1min
POWER SUPPLY Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 100 Units Per Month
- Delivery Time
- 7 Days
About POWER SUPPLY
A Switched Mode Power Supply (SMPS) is an electronic device that converts electrical power from one form to another (usually AC to DC) using high-frequency switching regulators to achieve high efficiency. They are widely used in computers, industrial automation, and consumer electronics due to their lightweight, compact design compared to linear power supplies.
Here is a short specification summary for a typical industrial/general-purpose SMPS:
General Specifications
- Input Voltage Range: Wide input, typically 90264V AC or 127370V DC.
- Input Frequency: 4763 Hz.
- Efficiency: Typically 80% to 90%+, significantly higher than linear supplies.
- Switching Frequency: High frequency (often 20 kHz to 1 MHz), making it inaudible to humans.
- Operating Temp: Typically -10C to +60C or -30C to +70C for industrial units.
- Isolation: Usually 2-3 kV AC between input and output.
Output Characteristics
- Output Voltage: Regulated DC (e.g., 5V, 12V, 24V, 48V).
- Voltage Regulation: High accuracy, often better than 1% for line and load regulation.
- Ripple & Noise: Low (usually <1% Pk-Pk).
- Hold-up Time: Varies, commonly 1020
Protection & Safety
- Short Circuit Protection: Self-recovering (Auto-recovery).
- Overload/Overpower Protection: Yes (OPP).
- Overvoltage Protection: Yes (OVP).
- Over Temperature Protection: Yes (OTP).
- Safety Standards: Complies with UL 1950, IEC 950/62368,
Key Features
- Active Power Factor Correction (PFC): Available in most modern units for enhanced efficiency (>0.92).
- Compact/Lightweight: Uses smaller transformers and heatsinks.
- Output Adjustment: Typically allows adjustment of output voltage via a potentiometer.
Reliable Performance for Industrial Applications
Designed for demanding environments, this power supply operates effectively within a -10C to 60C temperature range and 20%-90% non-condensing humidity. With high insulation resistance, dielectric strength, and metal (aluminium) enclosure, it meets rigorous industrial standards, ensuring long-term reliability for automation systems, panels, and critical equipment.
Flexible Mounting and Installation Options
Engineered for both DIN rail and panel mounting, this unit provides flexibility for various installation scenarios, making it suitable for integration into control panels, machinery, and electrical enclosures. The screw terminal block connector simplifies wiring and promotes secure electrical connections in industrial settings.
Enhanced Safety and Protection Features
Safety is paramount with built-in overvoltage, overcurrent, short circuit, overload, and overheat protection. The LED indicator allows immediate status monitoring, while the hold-up time exceeding 10ms at full load ensures output stability even during brief power interruptions, protecting sensitive devices.
FAQ's of POWER SUPPLY:
Q: How can I install the power supply on my equipment?
A: The unit supports both DIN rail and panel mounting, allowing you to secure it inside industrial control panels or onto standard DIN rails. Use the designated mounting holes and follow proper wiring through the screw terminal blocks for a safe installation.Q: What applications can this power supply be used for?
A: It is ideal for industrial automation systems, LED lighting installations, CCTV setups, programmable logic controllers (PLCs), and panel-powered devices, providing consistent and adjustable 12V DC output power.Q: When should I adjust the output voltage?
A: Adjust the output voltage within the 11.4-13.2V DC range when your equipment requires a specific voltage level to operate optimally. Always ensure the adjustment remains within the supported range for safety and reliability.Q: Where can this power supply operate effectively?
A: It is suitable for use in environments with temperatures from -10C to 60C and humidity levels of 20% to 90% (non-condensing), making it adaptable to a wide variety of industrial and commercial settings across India.Q: What is the process for connecting wires to the power supply?
A: Use the screw terminal block connector to securely fasten input and output wires. Always ensure the power is off during wiring and double-check connections for correct polarity and tightness before powering up.Q: How does the power supply benefit my equipment's safety?
A: With built-in over-voltage, over-current, short circuit, overload, and overheat protection, this power supply minimizes the risk of equipment damage, ensuring long-term reliability and reducing maintenance costs.Q: What are the key features that distinguish this power supply?
A: Key features include high efficiency (85%), LED status indicator, low ripple noise, broad working temperature range, natural air cooling, and robust protection mechanisms, all housed in a compact, lightweight metal enclosure.
